Add Digital Modes & PC Control to Your Xiegu G90

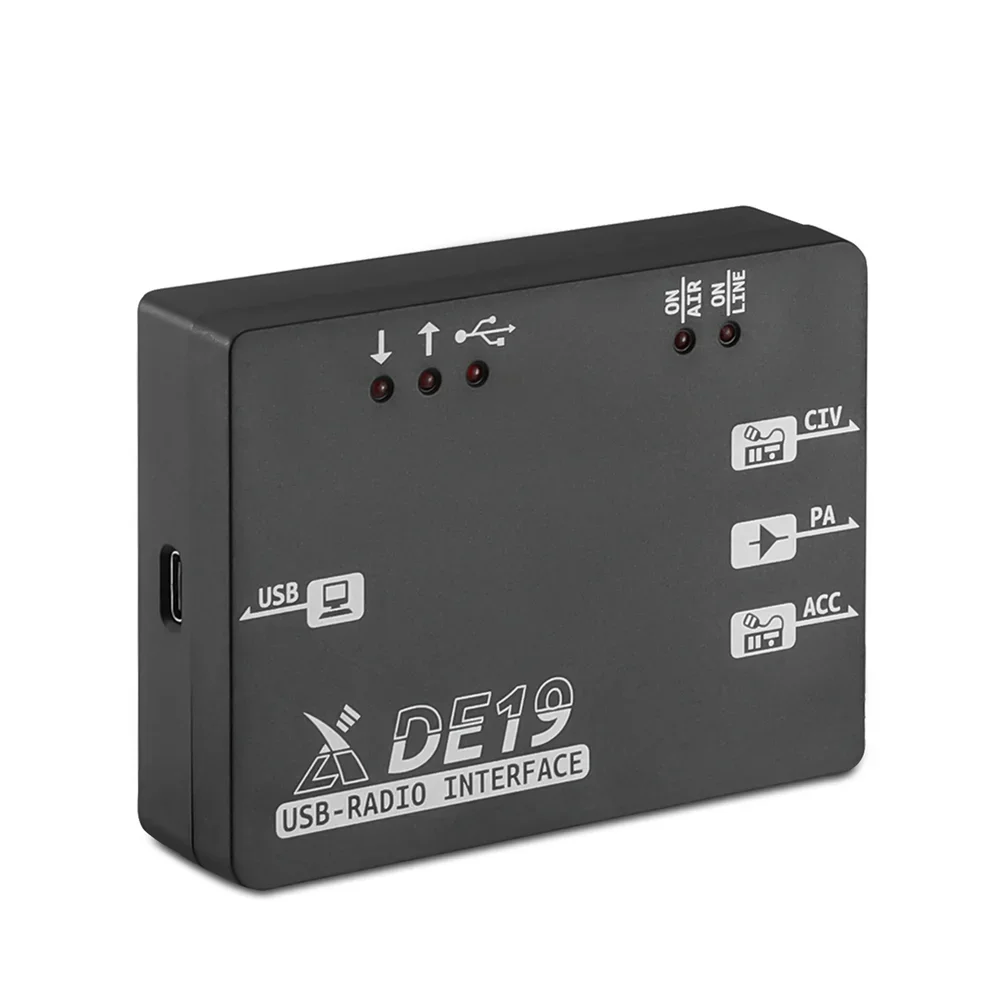

The Xiegu DE-19 is a compact data interface designed to connect compatible Xiegu transceivers to a computer for digital-mode operation, CAT control, and PC communications.
For G90 operators interested in FT8, FT4, JS8Call, JTDX, logging software, CAT control, and other computer-based amateur radio applications, the DE-19 provides a convenient all-in-one interface between your radio and PC.
The DE-19 combines the USB interface, sound-card functionality, signal isolation, amplification, and radio interface circuitry into a single compact unit.
USB Sound Card for digital-mode operation
CAT / PC Radio Control
Built-In Signal Isolation
Integrated Amplification Circuitry
CIV Radio Interface
ACC Mini-DIN 8-Pin Interface
XPA125B Interface
USB Connection to your computer
Status Indicators for connection and data activity
Compact design for both shack and portable operation

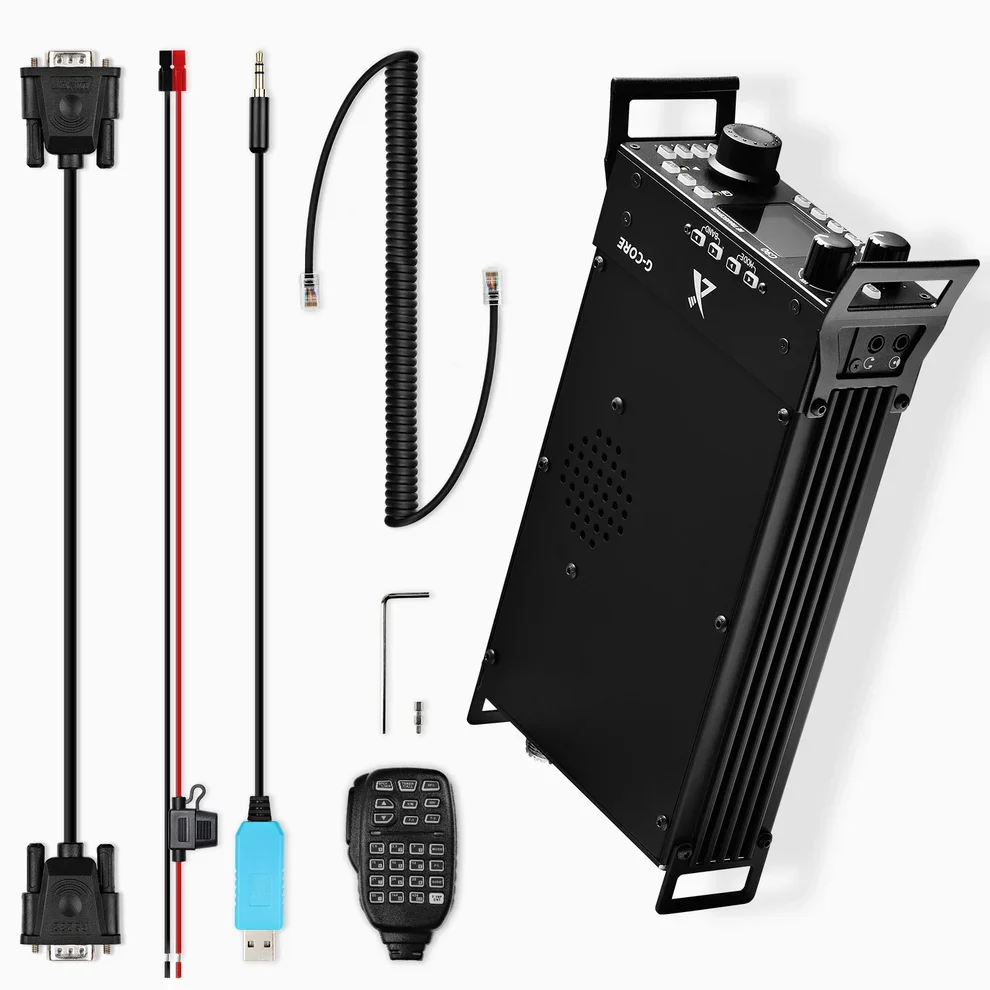

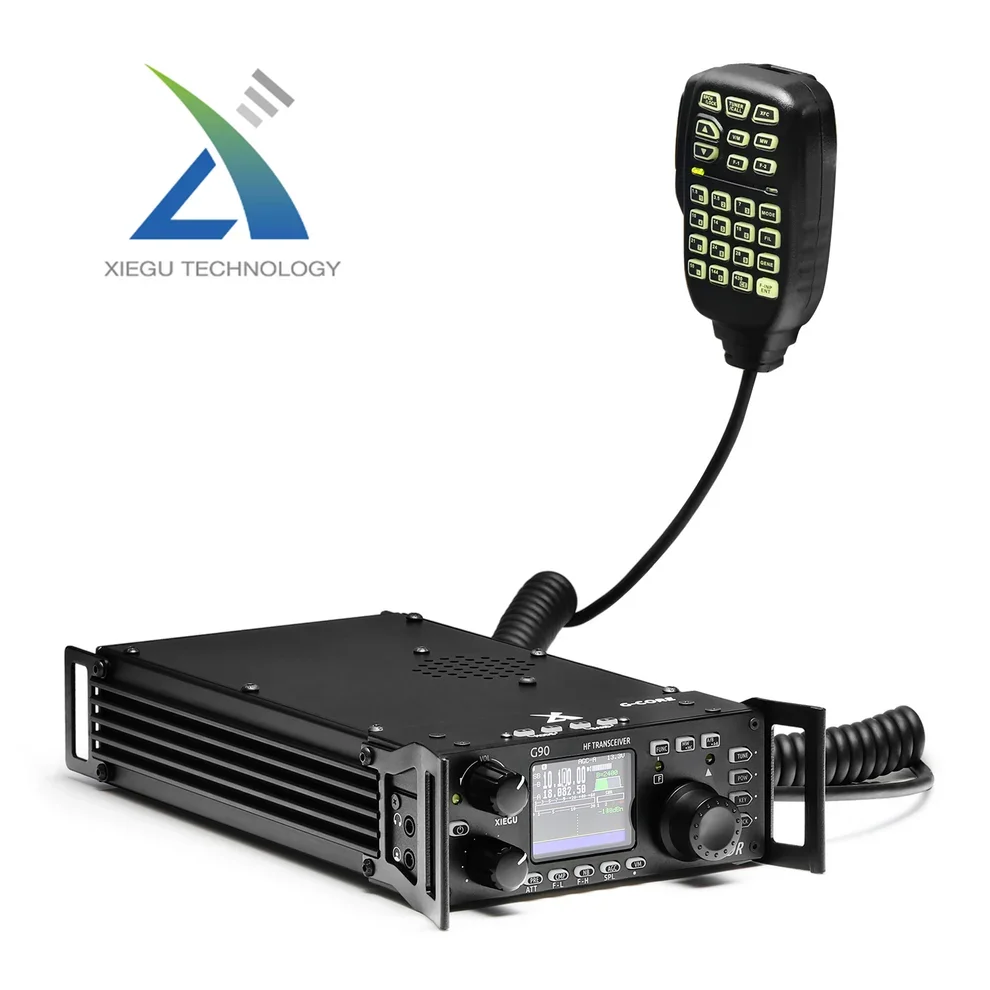

The DE-19 is an excellent addition to the Xiegu G90 20W HF SDR Transceiver, especially for operators who want to expand into digital modes or computer-controlled operation.
Connect the DE-19 between your G90 and computer to provide the audio and control interface required by many popular amateur radio programs.
No internal modifications to the G90 are required.
The DE-19 can be used with compatible software for:
FT8 & FT4
JS8Call
JTDX
Other Sound-Card Digital Modes
Computer Logging
CAT Frequency & Mode Control
Combined with the G90, the DE-19 makes it easy to build a compact digital HF station for POTA, portable operations, camping, emergency communications, or the home shack.

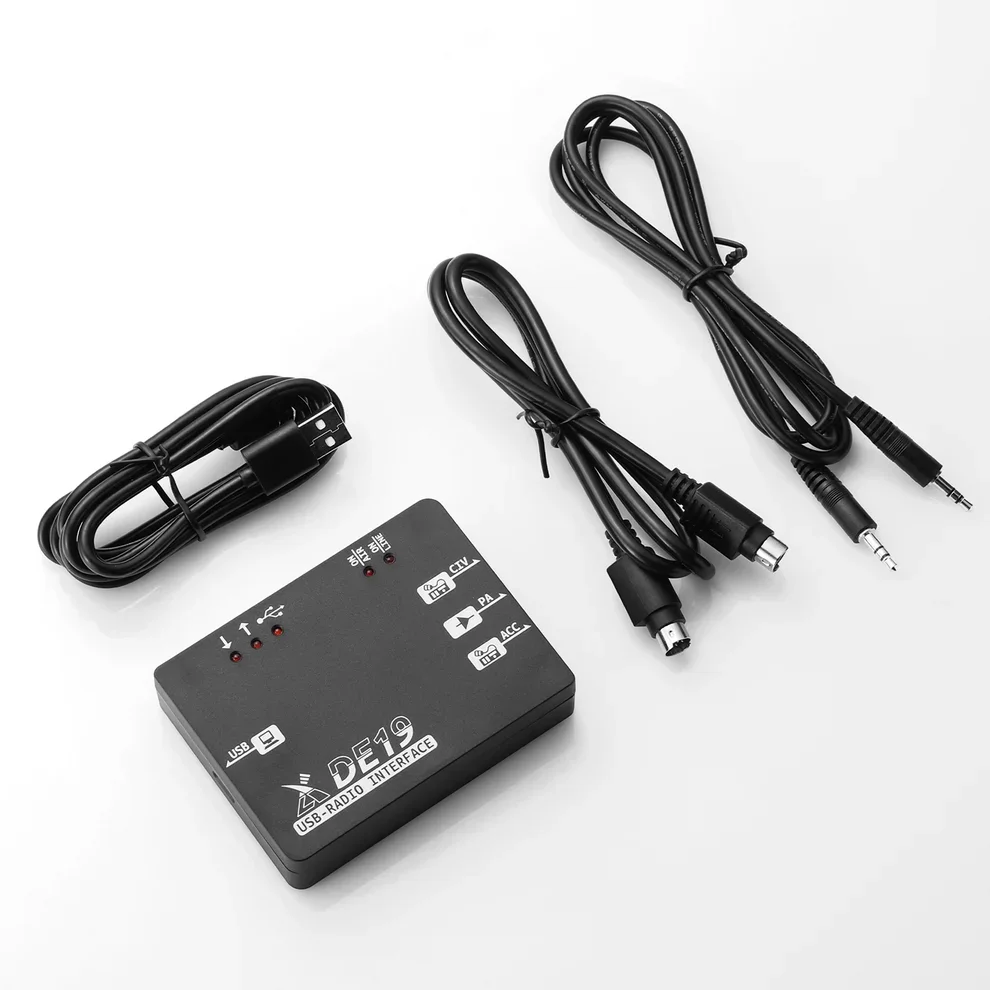

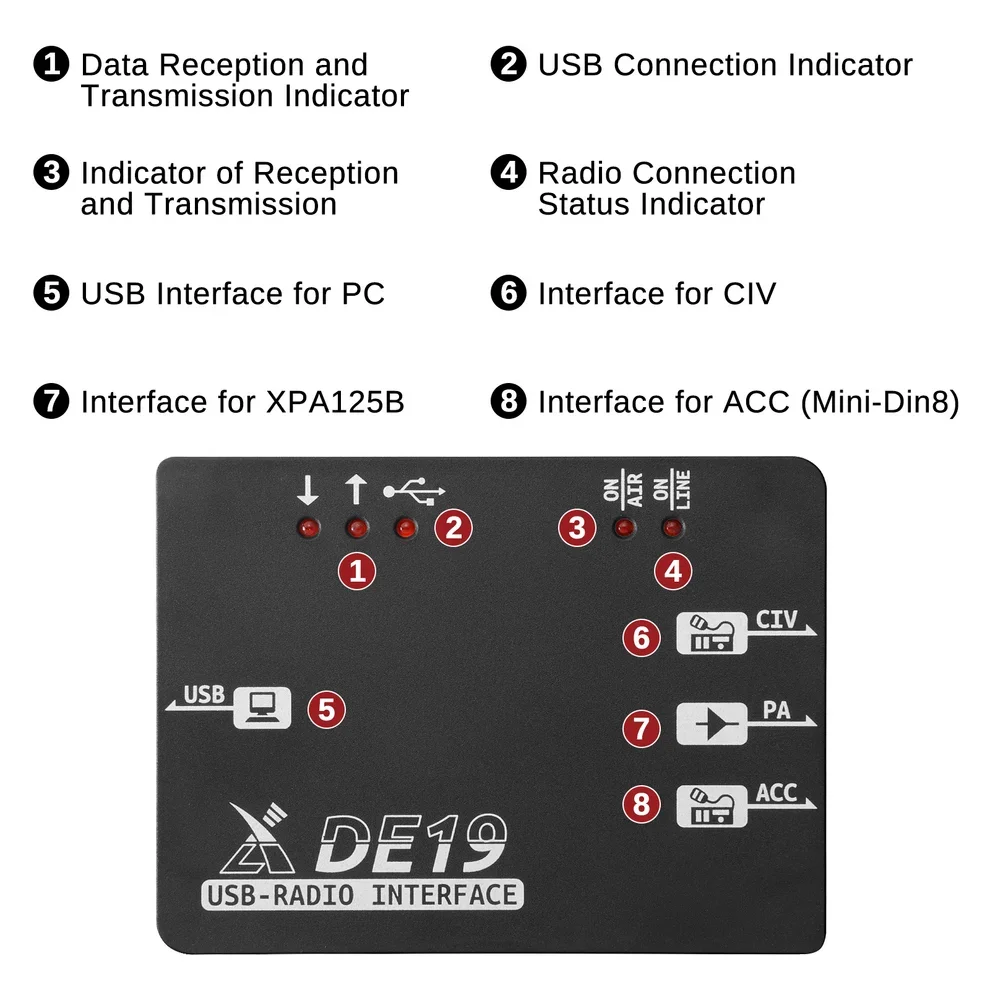

The DE-19 provides multiple connections and status indicators for integrating your radio and computer:
USB – Provides the connection between the DE-19 and your computer.
CIV – Provides radio communication and control.
ACC (Mini-DIN 8-Pin) – Provides the accessory and audio interface to compatible Xiegu radios.
XPA125B Interface – Supports connection with compatible Xiegu amplifier equipment.
Data Indicator – Displays data transmit and receive activity.
USB Indicator – Displays USB connection status.
RX/TX Indicator – Displays radio receive and transmit activity.
Radio Status Indicator – Displays radio connection status.
The DE-19 is designed for use with several Xiegu products, including:
Xiegu G90 HF Transceiver
Xiegu G106 QRP Transceiver
Xiegu X5105 HF Transceiver
Xiegu XPA125B Amplifier
If you're purchasing a Xiegu G90 and plan to operate digital modes or control your radio from a computer, the DE-19 is a great addition to your station.

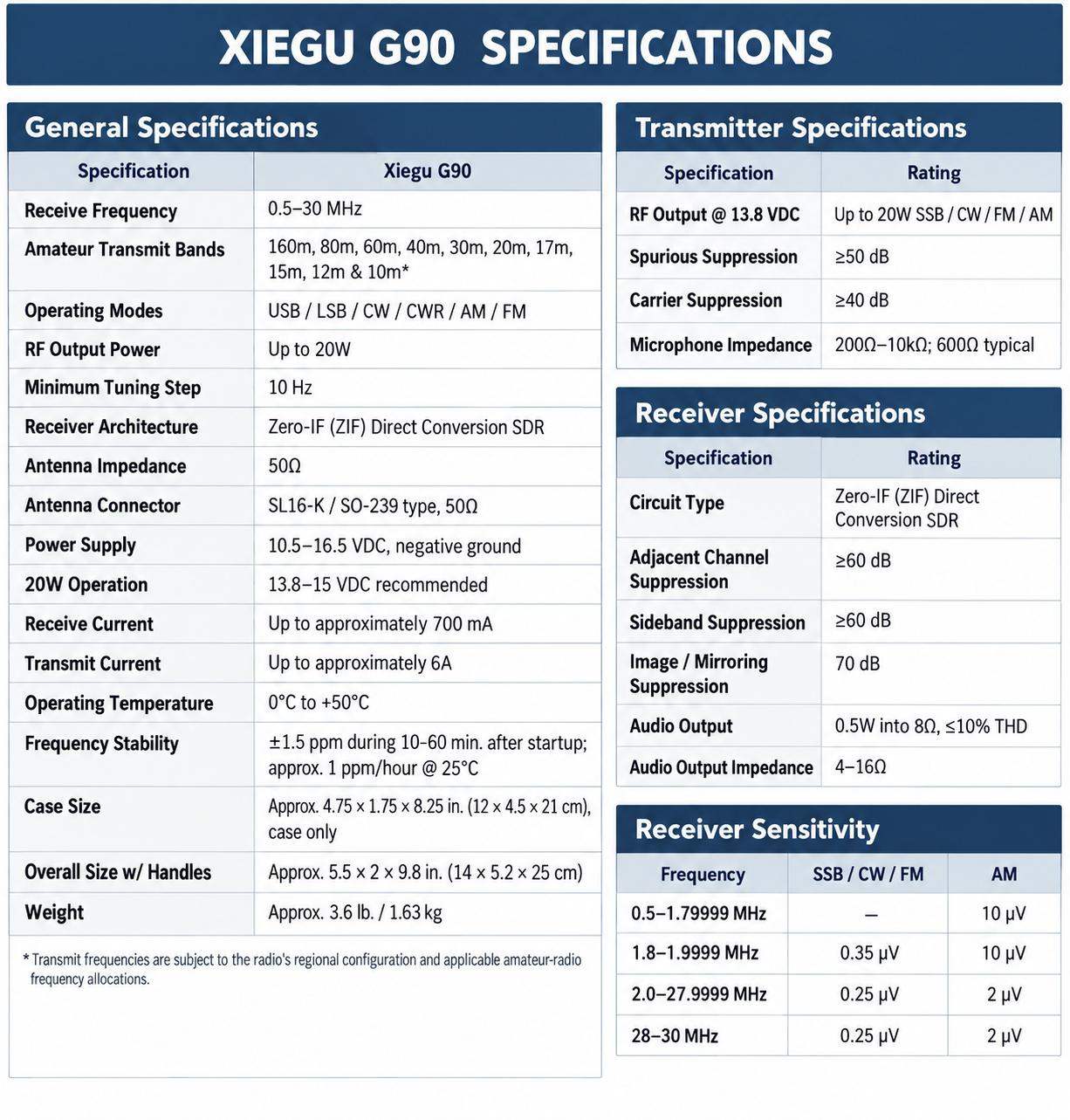

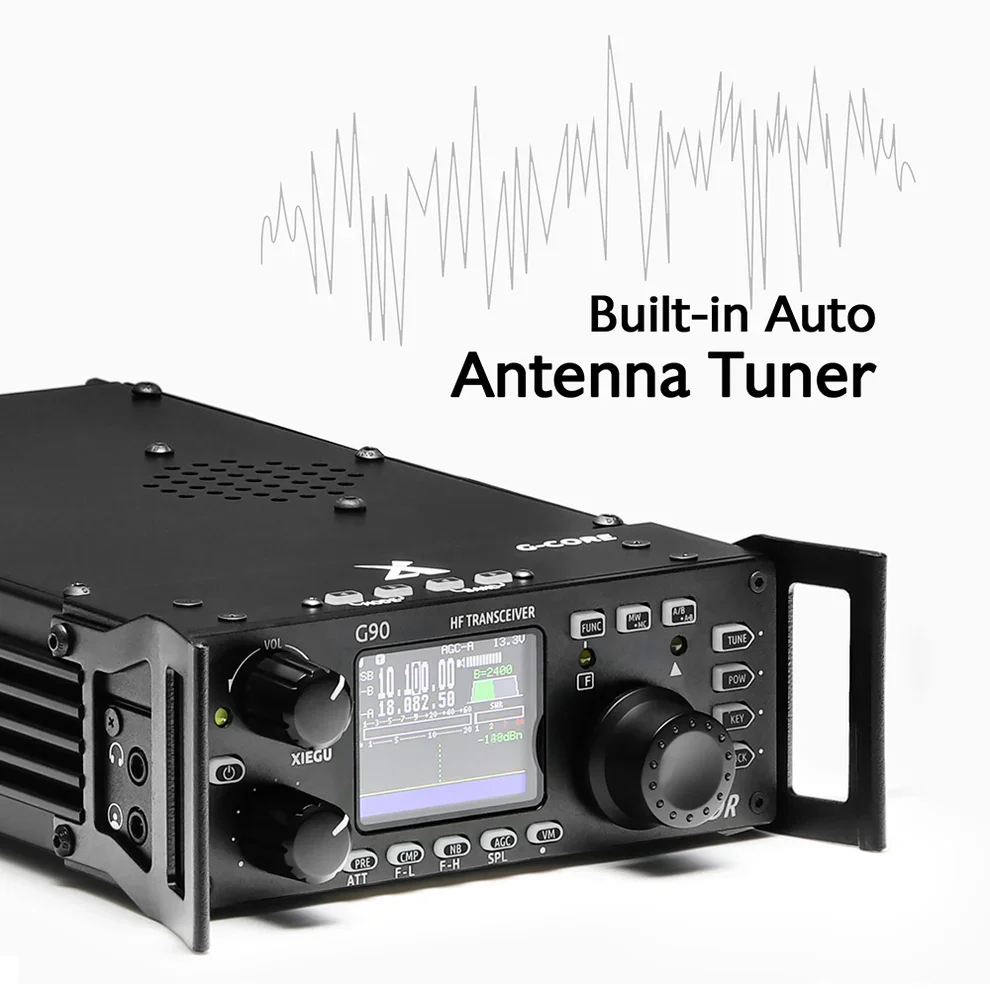

Combine the G90's 20-watt RF output, built-in automatic antenna tuner, SDR receiver, and spectrum display with the DE-19 for a compact and versatile HF digital station that's equally at home in the shack or in the field.
Xiegu G90 transceiver sold separately.
